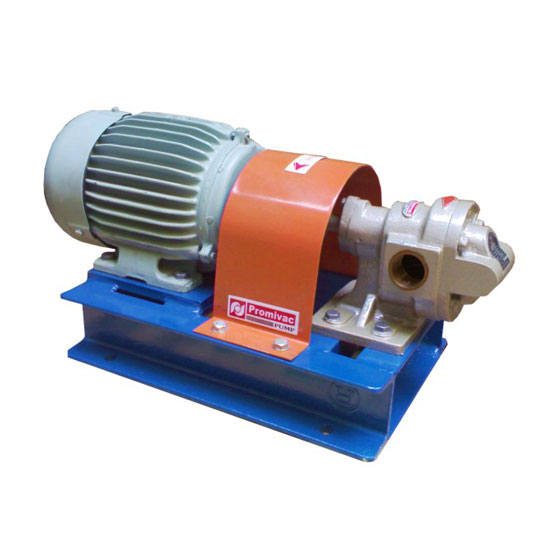

Rotary Gear Pumps

Gear pumps are the most commonly used for handling and transferring any kind of viscous liquids.may these be petroleum and food products, dyes, syrups, corrosive chemicals, soaps, detergents. Starch asphalts, ink and paints etc.

These are highly efficient and low coast positive displacement pumps. These are available in both C.I and S. S material of construction.

Jacketed pumps are also available which are required for handling substances like wax, which needs to be turned into fluid prior to moving them.

Specifications

Model No.	Inlet Outlet Size	Capacity		Recommended Motor HP at differential Pressure of 'X' kg/cm with 1500 SSU viscosity										Wt. of bare shaft pump in kg.
		LPM	M/Hr.	1	2	3	4	5	6	7	8	9	10
PSG-050	1/2" x 1/2"	20	1.2	0.5					0.75					2.3
PSG-075	3/4" x 3/4"	30	1.8	0.5			0.75			1.0				4.5
PSG-100	1" x 1"	50	3.0	0.5		0.75		1.0		1.5				6.2
PSG-125	1¼" x 1¼"	75	4.5	1.0		1.5			2.0			3.0		8.5
PSG-150	1½" x 1½"	110	6.6	1.5		2.0		3.0			5.0			10.0
PSG-200	2" x 2"	225	13.5	3.0			5.0			7.5				18.0
PSG-250	2½" x 2½"	350	21.0	5.0		7.5		10.0			12.5			27.3
PSG-300	3" x 3"	500	30.0	10.0		12.5		15.0			20.0			38.5
