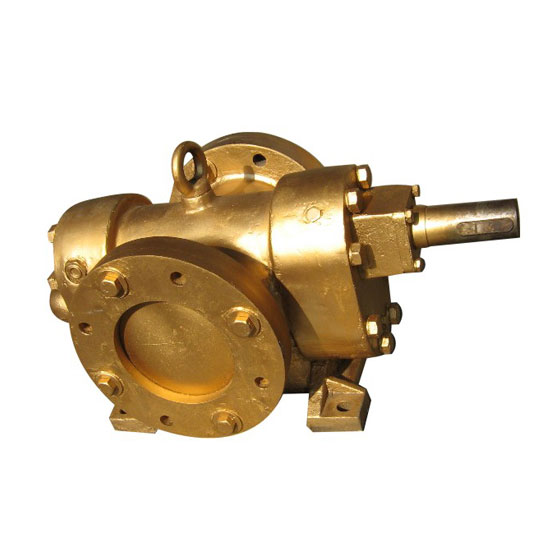

Gear Pumps belonging to PEX Series are used for transferring that category of Viscous and Semi-Viscous liquids, which because of their offending nature could not be entertained by pumps of PSG Series. Here this snag is removed by locating the bearings outside the pumping chamber where they remain out of the reach of the inner criminal atmosphere and are lubricated independently.

Recommended for liquids like crude oil cotton seed oil, dirty lube oil, High Speed Diesel, Light Diesel, Resin, Varnish, Transformer oil, Molasses, Glue, Glycol, Cream, Sugar Solution, Starch and so on. Jacketed Version of these pumps are also available to handle Silicate, Soap Solution, Wax, Petroleum Stock, Viscouse, Neptha and cellulose.

Specifications

Model	Inlet & Outlet Sizes	Speed	Capacity		Power Required in Bhp At 'X' Kg/cm² Differential Pressure									Weight
Model	Inlet & Outlet Sizes	Speed	lpm	m³ / hr	1	2	3	4	5	7	8	10	12	Weight
050-S	½” X ½”	1440 rpm	8.3	0.5	0.20	0.23	0.27	0.30	0.32	0.36	0.38	0.43	0.47	10
050-M			16.6	1.0	0.24	0.28	0.32	0.36	0.40	0.48	0.52	0.60	0.68
050-L			25.0	1.5	0.30	0.36	0.41	0.47	0.52	0.63	0.70	0.81	0.93
100-S	1” X 1”		33.3	2.0	0.37	0.45	0.54	0.62	0.69	0.85	0.92	1.09	1.25	15
100-M			41.5	2.5	0.38	0.48	0.57	0.65	0.76	0.95	1.08	1.23	1.41
100-L			50.0	3.0	0.40	0.50	0.60	0.75	0.89	1.17	1.30	1.59	1.85
150-S	1 ½” X 1 ½”		83.3	5.0	0.70	1.00	1.20	1.40	1.50	1.95	2.15	2.55	2.95	25
150-M			100.0	6.0	0.85	1.10	1.35	1.55	1.77	2.22	2.45	2.90	3.45
150-L			125.0	7.5	1.05	1.45	1.95	2.10	2.40	2.95	3.25	4.00	4.90
200-S	2” X 2”		150.0	9.0	1.35	1.80	2.45	3.00	3.50	4.50	5.25	6.35	7.60	32
200-L	2” X 2”		200.0	12.0	1.80	2.40	2.95	3.50	4.05	5.15	5.70	6.90	8.10	32
250-S	2 ½” X 2 ½”		250.0	15.0	2.00	2.50	3.20	3.75	4.30	5.60	6.20	7.70	9.50	45
250-L	2 ½” X 2 ½”		333.0	20.0	3.80	4.65	5.50	6.35	7.25	9.05	10.50	12.20	14.35	45
300-S	3” X 3”		415.0	25.0	5.00	6.00	7.00	8.00	9.00	11.00	12.00	14.25	16.50	75
300-L	3” X 3”		500.0	30.0	6.00	7.35	8.65	10.15	11.45	14.05	15.40	17.90	21.00	75
400-S	4” X 4”		666.6	40.0	8.85	10.50	12.00	13.65	16.25	18.25	20.00	22.00	25.50	120
400-L	4” X 4”		833.3	50.0	9.50	11.50	14.00	16.00	18.00	22.50	25.00	30.00	35.50	120
500-S	5” X 5”	960 rpm	1000.0	60.0	14.50	17.20	19.00	22.00	24.80	30.00	32.40	37.20	42.50	150
500-L	5” X 5”		1250.0	75.00	17.50	20.50	23.50	27.00	30.50	36.50	40.00	46.00	53.00	150
600-S	6” X 6”		1660.0	100.0	21.50	25.55	30.00	34.55	40.00	48.85	52.90	62.00	72.00	180
600-L	6” X 6”		2083.0	125.0	25.50	31.00	36.00	41.50	46.50	57.00	63.00	72.00	81.00	180
