Promivac Engineers

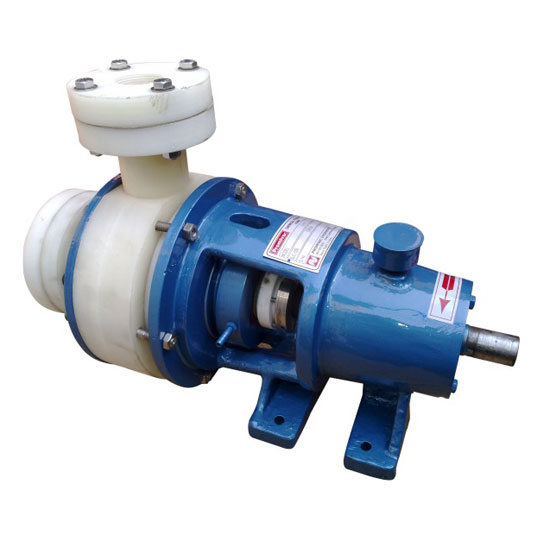

In order to meet the ever increasing complex demands of chemical process industry, Promivac offers a single ideal solution for host of their problems concerning effective handling of highly corrosive liquids and tough pumping services by developing a centrifugal pump fabricated from chemically inert Polypropylene.

It has proved a panacea for host of transferring problems of hazardous liquids like HCL, H2SO4, HNO3, H3Po4, HF, Sea Water, Caustic Slurries & Industrial Waste and Boon for Pharmaceutical, Chemical Processing, Electroplating and Effluent Handling Industries.

Made from top quality material, these pumps dauntlessly are capable of with standling high friction with minimum wear and tear. Keeping in view vital importance of leakless operations, the pumps are supplied along with externally mounted Teflon Bellow Stainless Steel-316 Mechanical Seal with precisely finished sliding surface.

Polypropylene coated S.S. shaft is guided in grease lubricated deep groove ball bearings. These pumps are more economical and versatile than their version made of alloys.

Specifications

Model No. Suc. X Del.
Size mm
Motor
hp
Speed
rpm
Head in Meters
4 8 10 11 15 18 20 22 30 LPM
PCP-100 25 X 25 1 2800 125 75 50 30 - - - - -
PCP-200 40 X 32 2 2800 - - 150 135 90 50 - - -
PCP-300 50 X 40 3 2800 - - 250 230 200 150 75 50 -
PCP-500 65 X 50 5 2800 - - 300 280 250 220 200 175 75
Model No. Suc. X Del.
Size mm
Motor
hp
Speed
rpm
Head In Meters V/s Capacity in m3/hr
PCPP - 100 25 X 25 1.0 2880 12 - 00 10 - 02 09 - 05 07 - 08 06 - 11 04 - 13
PCPP - 120 40 X 40 2.0 2880 17 - 00 15 - 05 13 - 10 11 - 13 07 - 19 05 - 22
PCPP - 130 40 X 40 3.0 2880 28 - 00 25 - 05 21 - 10 17 - 16 14 - 21 09 - 26
PCPP - 160R 40 X 40 3.0 2880 25 - 00 21 - 05 20 - 10 15 - 15 10 - 25 05 - 27
PCPP - 160 75 X 40 5.0 2880 30 - 00 27 - 05 25 - 10 20 - 20 15 - 30 10 - 35
PCPP - 170 75 X 50 7.5 2880 33 - 00 30 - 10 25 - 30 20 - 40 15 - 45 10 - 56
PCPP - 40 50 X 40 12.5 2880 50 - 00 45 - 10 40 - 25 35 - 30 30 - 35 25 - 40
PCPP - 50R 40 X 40 2.0 1440 12 - 00 10 - 05 10 - 10 09 - 15 08 - 20 07 - 25
PCPP - 50 75 X 40 3.0 1440 14 - 00 13 - 05 12 - 15 11 - 25 10 - 32 05 - 35
PCPP - 55 75 X 50 5.0 1440 16 - 00 15 - 05 14 - 16 12 - 35 10 - 45 06 - 50
