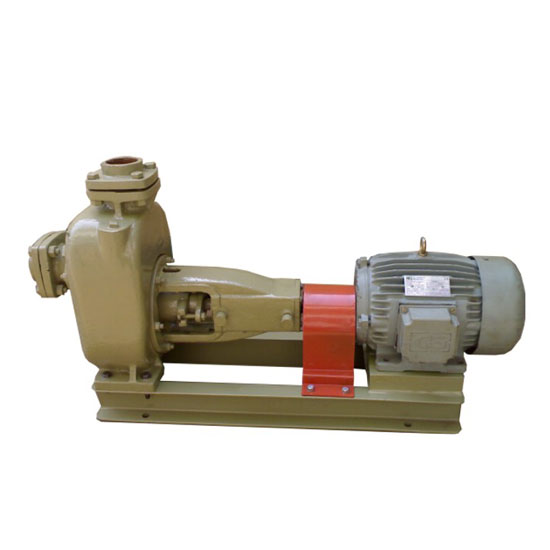

Single stage, horizontal,
centrifugal, self priming, end suction, mud / sewage pumps are of non-clog
type. These have semi-open type, dynamically balanced impeller for vibration
free operation and hence have longer life.
These are best suited
for applications where self priming action is required such as pumping water
from docks, ports, vessels; pumping petroleum products, chemicals, effluent
water, filter press; dewatering foundations, trenches & pits, sewage
pumping etc.
Technical
Specifications
| Model |
Size
in mm |
Imp.
Dia in mm. |
Solid
Hand-
ling Size mm |
Total
Head in Meters |
Power
Rating |
Rated
Speed RPM |
Drive
Type |
| SUC. |
DEL. |
6 |
8 |
10 |
12 |
14 |
15 |
16 |
18 |
19 |
20 |
22 |
24 |
25 |
26 |
28 |
30 |
32 |
34 |
35 |
Kw |
HP |
| Motor
Coupled |
Capacity
in Leters / Second |
|
|
|
|
| PSMP-40A |
40 |
40 |
116 |
7.0 |
4.6 |
4.1 |
3.5 |
2.6 |
1.5 |
0.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
0.75 |
1.0 |
2880 |
Motor |
| PSMP-40B |
40 |
40 |
135 |
8.5 |
|
4.8 |
5.9 |
5.3 |
4.9 |
4.4 |
3.9 |
1.9 |
1.5 |
0.8 |
|
|
|
|
|
|
|
|
|
1.5 |
2.0 |
2880 |
Motor |
| PSMP-50 |
50 |
50 |
145 |
10.5 |
|
|
9.0 |
8.2 |
7.5 |
7.0 |
6.7 |
5.7 |
5.0 |
4.7 |
4.0 |
2.6 |
1.9 |
0.8 |
|
|
|
|
|
2.2 |
3.0 |
2880 |
Motor |
| PSMP-80A |
80 |
80 |
224 |
15.0 |
19.7 |
18.9 |
18.0 |
16.4 |
14.0 |
12.1 |
10.1 |
5.2 |
|
|
|
|
|
|
|
|
|
|
|
3.7 |
5.0 |
1440 |
Motor |
| PSMP-80B |
80 |
80 |
174 |
7.0 |
|
|
|
|
|
|
|
|
|
10.0 |
9.3 |
8.2 |
7.5 |
6.8 |
5.2 |
3.8 |
2.0 |
|
|
3.7 |
5.0 |
2880 |
Motor |
| PSMP-80C |
80 |
80 |
174 |
14.5 |
|
|
|
|
|
|
|
|
17.2 |
16.3 |
16.2 |
15.5 |
14.8 |
14.0 |
12.5 |
10.2 |
8.0 |
5.5 |
4.8 |
5.5 |
7.5 |
2880 |
Motor |
| PSMP-100A |
100 |
100 |
292 |
18.5 |
|
|
36.0 |
33.9 |
31.2 |
30.1 |
28.6 |
25.5 |
23.9 |
22.5 |
18.0 |
12.0 |
|
|
|
|
|
|
|
7.5 |
10.0 |
1440 |
Motor |
| PSMP-100B |
100 |
100 |
292 |
23.0 |
|
|
44.5 |
39.5 |
36.6 |
35.3 |
33.8 |
30.5 |
28.5 |
26.2 |
21.8 |
16.5 |
13.3 |
10.0 |
8.0 |
|
|
|
|
9.3 |
12.5 |
1440 |
Motor |
| PSMP-150A |
150 |
150 |
296 |
34.0 |
|
|
66.2 |
63.3 |
59.8 |
57.5 |
5.0 |
48.9 |
45.5 |
42.4 |
34.2 |
23.8 |
20.0 |
|
|
|
|
|
|
15.0 |
20.0 |
1440 |
Motor |
| PSMP-150B |
150 |
150 |
296 |
40.0 |
|
|
75.0 |
72.0 |
68.0 |
66.2 |
64.0 |
58.5 |
5.5 |
52.0 |
45.0 |
34.0 |
27.5 |
20.0 |
|
|
|
|
|
18.7 |
25.0 |
1440 |
Motor |
| Engine
Coupled |
|
|
|
|
|
| PSMP-80A |
80 |
80 |
224 |
15 |
20.3 |
19.9 |
19.0 |
17.7 |
15.6 |
14.1 |
12.5 |
8.8 |
6.3 |
3.5 |
|
|
|
|
|
|
|
|
|
|
|
|
Engine |
| PSMP-80B |
80 |
80 |
224 |
15 |
|
|
24.2 |
23.6 |
23.0 |
22.5 |
22.0 |
20.7 |
19.9 |
19.0 |
16.7 |
13.7 |
12.0 |
10.1 |
6.0 |
|
|
|
|
|
|
|
Engine |
| PSMP-100A |
100 |
100 |
292 |
18.5 |
|
|
|
36.3 |
33.9 |
32.5 |
31.2 |
28.2 |
26.6 |
25.0 |
21.5 |
17.1 |
14.5 |
11.5 |
|
|
|
|
|
|
|
|
Engine |
| PSMP-100B |
100 |
100 |
292 |
23 |
|
|
|
41.4 |
39.1 |
38.0 |
36.0 |
33.9 |
32.3 |
30.5 |
26.4 |
21.5 |
18.5 |
16.0 |
9.9 |
|
|
|
|
|
|
|
Engine |
| PSMP-150A |
150 |
150 |
296 |
34 |
|
|
68.0 |
66.1 |
63.0 |
52.0 |
59.0 |
53.5 |
51.7 |
48.0 |
41.0 |
32.8 |
28.4 |
22.5 |
|
|
|
|
|
|
|
|
Engine |
| PSMP-150B |
150 |
150 |
296 |
40 |
|
|
77.5 |
75.0 |
72.0 |
71.0 |
68.0 |
63.0 |
62.0 |
57.0 |
51.0 |
42.5 |
38.8 |
32.5 |
|
|
|
|
|
|
|
|
Engine |
