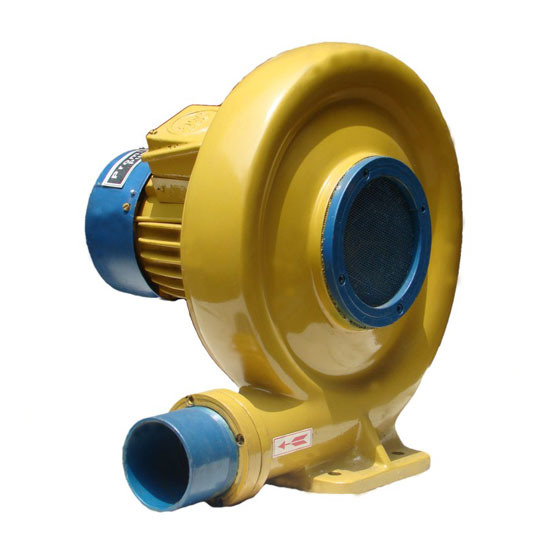

These are available in Single, Double & triple Stage in Direct / V - Belt Driven Versions. These are Specially Designed and Fabricated to ensure High Efficiency & Trouble Free Operation and are Highly Resistant to severe conditions such as High Temperature, Corrosion and Abrasion. These are available in different materials of construction such as Carbon Steel, Stainless Steel, Aluminum, Rubber Lined, Epoxy Painted and FRP Fabricated.

Construction

An Exhauster or Blower consists of a rotating system of Shaft & Impellers operating in a specially designed casing with Inlet & Outlet connections. The shaft is made of High Grade Carbon Steel, machined & ground to accommodate the Impellers & Bearings. The Impellers are a composite section of casting / fabricated from high tensile aluminum, MS/CRC sheet, accurately balanced & are held securely on the shaft by heavy endwise locknuts.

PromivacAdvantage

Straightforward Single / Multistage Design, Dynamically Balanced Impellers minimize vibration, No fine internal clearances or wearing parts, No lubrication required, Air delivered is free from Moisture & Oil Vapour, Low Noise Level, Low Power Consumption, Air delivered is free from pulsation & is uniform No need for Relief Valve, Versatile - Can be used for Suction & Blowing

Optional Accessories

Vibration Isolators & Flexible Connections at Inlet & Outlet can be provided to minimise transmission of Vibration, Inlet / Outlet Silencers to reduce Noise Level & Multivane Damper for controlling air. A suitably designed Vacuum Storage Tank can also be supplied with the unit to act as a reservoir to store Vacuum for Instant Evacuation.

Applications

Garment Pressing, Steam & Condensate Extracting, Vacuum Cleaning, Dust / trim collection, Pneumatic Conveying, Ventilation, Air Blowing & Boosting, Handling Hot Flue Gases, Agitation of Liquids, Bottle Drying & many more.

Specifications

: : Single Stage : :
Model Suction Size in Inches H.P Reqd. Air Handling Capacity (CFM) Max. Pressure Inches Wg
PVF - 4 4 0.25 400 32
PVF - 6 6 0.5 935 32
PVF - 8 8 0.75 1160 32
PVF - 10 10 1 2600 32
PVF - 12 12 1.5 3740 32
PVF - 14 14 2 5090 32
PVF - 16 16 3 5400 32
PVF - 18 18 5 6650 32
PVF - 20 20 7.5 10390 32
PVF - 22 22 10 12570 32
PVF - 24 24 15 14960 32
: : Double Stage : :
Model Suc. x Del. Size in Inches H.P Reqd. Air Handling Capacity (CFM) Max. Pressure Inches Wg Max. Vacuum Inches Wg
PVF - 6 GMT 6 x 4 7.5 500 70 32
PVF - 7 GMT 6 x 4 10 750 85 40
PVF - 8 GMT 8 x 6 15 1000 90 43
PVF - 9 GMT 8 x 6 20 1100 100 48
: : Triple Stage : :
Model Suc. x Del. Size in Inches H.P Reqd. Air Handling Capacity (CFM) Max. Pressure Inches Wg Max. Vacuum Inches Wg
PVF - 8 GMTT 8 x 6 20 1150 125 58
PVF - 9 GMTT 8 x 6 30 1450 140 64
PVF - 10 GMTT 10 x 8 40 1725 170 80
